Wall Hung Gas Boiler
>
|
| Place of Origin | China,Shunde |
| Brand Name | Dongyuan |
| Certification | ISO14001,ISO9001,OHSAS18001 |
| Model Number | L1PB24-NS07 |

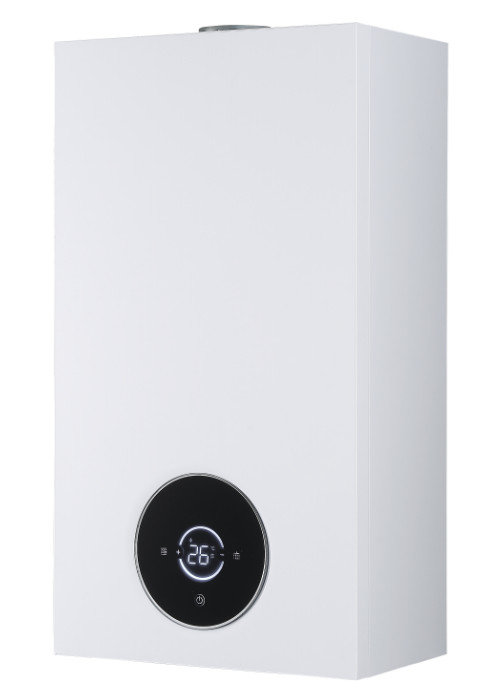

Wall Hung Combi Boiler With Maximum Central Heating For Bathroom
DESCRIPTION OF WALL HUNG COMBI BOILER
Gas boiler for both Domestic hot water and heating
ADVANCE
SAFE
COMFORTABLE
ENERGY-SAVING
TECHNICAL DATA OF WALL HUNG COMBI BOILER
| Model Number | L1PB20 | L1PB24 |
| Gas Type | NG/LPG | |
| Rated Gas Pressure(Pa) | 2000/2800 | |
| Rated Gas Input(kw) | 20 | 24 |
| Rated Gas Output(kw) | 17.6 | 21.1 |
| Efficiency Under Rated Heat Input(%) | Above88% | |
| Power Supply | 20-50HZ | |
| Electric Power(W) | 110 | 110 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 | |
| Heating Area(㎡) | 80-160 | 100-200 |
| Lift Of pump(m) | 5 | 5 |
| Application Water Pressure(Mpa) | 0.1-0.3 | |
| Expansion Tank Capacity(L) | 6 | 6 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 | |
| Water Circulation Type | Airtight Forced Circulation | |
| △T=25℃ Hot Water Supply(kg/min) | 10 | 12 |
| △T=30℃ Hot Water Supply(kg/min) | 8.3 | 10 |
| Temp.Range Of DHW Supply(℃) | 30-60 | |
| Applicative Water Pressure(mpa) | 0.03-0.8 | |
| The Minimum Starting Flow (L/min) | 2 | |
| The Minimum Closed Flow(L/min) | 1.6 | |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 | |
| Air Input/Exhaust Duct(mm) | φ60/φ100 | |
| The length Of Flue Dust(m) | 1 | |
| Exhaust Type | Forced Exhaust | |
| Ignition Type | Integrated Automatic Ignition | |
| Temperature Control | Gas Proportional Adjustment |
|
PRODUCT DISPLAY
MAIN COMPONENTS
COMPANY PROFILE
ABOUT US
In order to meet the demand of heating market, Foshan Shunde Dongyuan gas appliances Ind. Co.,Ltd as a professional wall hung gas boiler , gas water heater manufacturer was established in 2007 and start to develop the overseas market from 2010 , and recognized as “ China High-tech enterprise” in 2017. We move to the new factory in 2018, and named Foshan Dongyuan Thermal Technology Co., Ltd.
With an area of 14,000 square meters, Foshan Dongyuan Thermal Technology Co., Ltd. have five fully automatic production lines with an annual capacity of 500,000 pieces ,have 8 engineers with 26 years R&D experiences . With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers and water heater hot sale well all over the world, especially in Russia, Iran, Azerbaijan, Uzbekistan, Israel and other European,Southest Asia and South America, etc.
