Wall Hung Gas Boiler
>
|
| Place of Origin | SHUNDE, CHINA |
| Brand Name | Dongyuan |
| Certification | ISO14001,ISO9001,OHSAS18001 |
| Model Number | L1PB24-NL |
With large LED display and high intelligent control system wall hung gas boiler high efficiency combustion
- Air draught model. Open chamber, especially design for house type with collective flue.
- Neat design, gas saving, high efficiency, environmental protected. Adopt advanced technology, high quality components, high efficiency combustion.
- Various capacity available. Input capacity(20kw,24kw,28kw,32kw) can match with different house type.
- Can be connected with room thermostat or remote controller which providing more function options.
- Various structure available,suitable for different using condition.
- Integrated pump, expansion tank, heating safety,manometer, automatic air exhaust device.
- Frost protection: Burner and pump will be switch on automatically by danger of freezing. It is allowed to use antifreeze liquid instead of water in the heating system.
- Steady ignition and work by low inlet gas pressure from 3mbar, full output by inlet gas pressure from 13mbar and higher.
- Protected service menu for internal functions and working parameters adjusting.

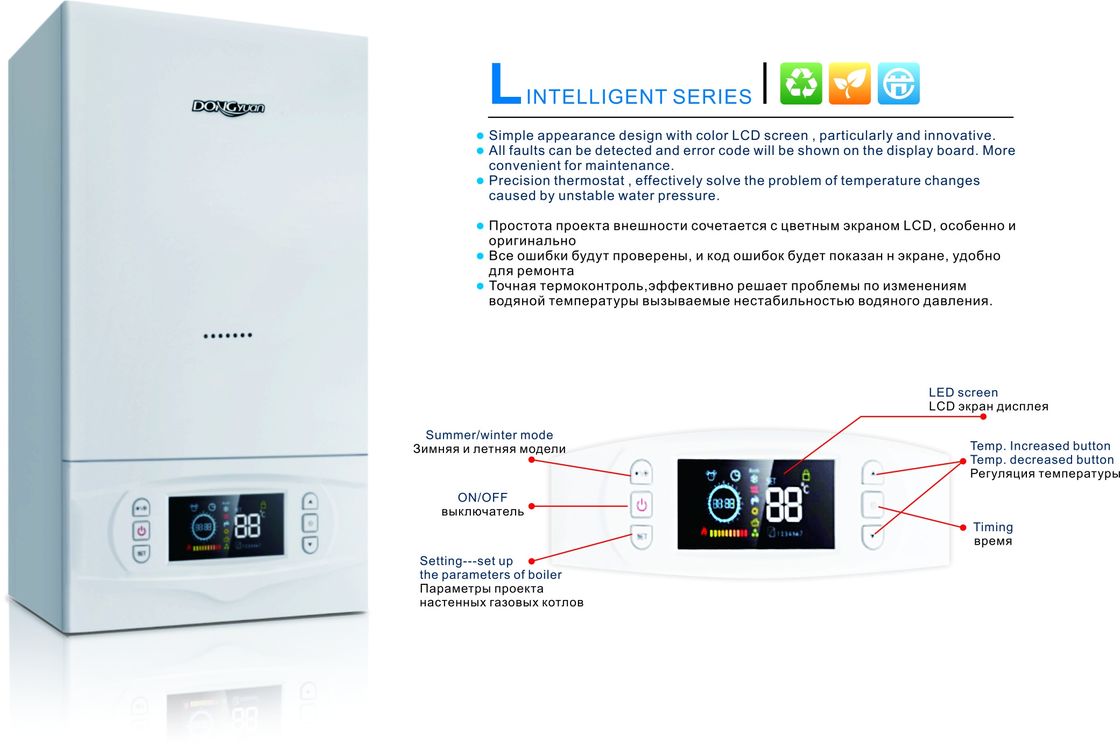

- Indication of temperatures, working modes, current burner power and error codes on the color multifunctional LED display.
- Modulation: boiler output changes automatically to keep the set heating and DHW temperature constant, with great optimization of gas consumption.
- Fan burner with full gas- air premix provides gas combustion with close to ideal conditions-so the condensation process begin earlier and by higher return line temperature(about 57℃)
- Multiple security features, automatic return to work status,security no worries.
- Can connect with room thermostat and remote controller which can provide more function options.
- With Aluminum fan and good quality ball bearing ensure low noise while working.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- Main heat exchanger with high efficiency and energy-saving enable heating efficiency reach Europe Standard.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- High efficiency sealed chamber system ensure sufficient burning and energy saving.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- High efficient sealed chamber system ensure sufficient burning and energy saving.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- Multiple automatic protecting function ensure safety and reliability.
- Unique remote control system realizing climate compensation function,ensure energy saving.
- Fashionable LED display with indicate light, fur able touch switch operation.(Fashionable LED display with durable touch and knob switch operation.)
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
Technical data
| Model Number | L1PB24 |
| Rated Gas Pressure(Pa) | 2000 |
| Rated Gas Input(kw) | 24 |
| Rated Gas Output(kw) | 21.1 |
| Gas Type | NG/LPG |
| Heating Area(㎡) | 100-200 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Electric Power(W) | 110 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| The Minimum Closed Flow(L/min) | 1.6 |
| The Minimum Starting Flow (L/min) | 2 |
| Expansion Tank Capacity(L) | 6 |
| Lift Of pump(m) | 5 |
| Power Supply | 20-50HZ |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=30℃ Hot Water Supply(kg/min) | 10 |
| △T=25℃ Hot Water Supply(kg/min) | 12 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| Noise On Working(DB) | ＜42 |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| The length Of Flue Dust(m) | 1 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment |
