Home Gas Boiler
>
|
| Place of Origin | China,Shunde |
| Brand Name | Dongyuan |
| Certification | ISO14001,ISO9001,OHSAS18001 |
| Model Number | L1PB32-NL |
Environmental Protection Energy Saving For Room Heating And Shower Hot Water Wall Mounted Gas Boiler
Technical data
| Model Number | L1PB36 |
| Gas Type | NG/LPG |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Rated Gas Input(kw) | 36 |
| Rated Gas Output(kw) | 31.7 |
| Efficiency Under Rated Heat Input(%) | Above88% |
| Power Supply | 20-50HZ |
| Electric Power(W) | 145 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Heating Area(㎡) | 200-300 |
| Lift Of pump(m) | 7 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 8 |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Water Circulation Type | Airtight Forced Circulation |
| △T=25℃ Hot Water Supply(kg/min) | 18 |
| △T=30℃ Hot Water Supply(kg/min) | 15 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 |
| The length Of Flue Dust(m) | 1 |
| Noise On Working(DB) | ＜42 |
| Exhaust Type | Forced Exhaust |
| Ignition Type | Integrated Automatic Ignition |
| Temperature Control | Gas Proportional Adjustment |
| Product Dimensions(mm) | 855*470*390 |
| Packing Dimensions(mm) | 870*495*390 |
- Inteligent constant temperature control will provide easeful warmth for your rooms and comfortable shower
water anytime.
- Protected service menu for internal functions and working parameters adjusting.
- High reliability with integrated switch-mode power supply(SMPS)
- Supports smooth control with Open Therm room thermostat from any producer.
- Sectional stainless steel condensing heat exchanger for condensation and utilization of latent of the water
vapors from exhausting smoke with efficiency till 90%.
- Electronic controlled fan with variable rotation speed for keeping the optimal minimal required air exceed in
the gas-air mix.

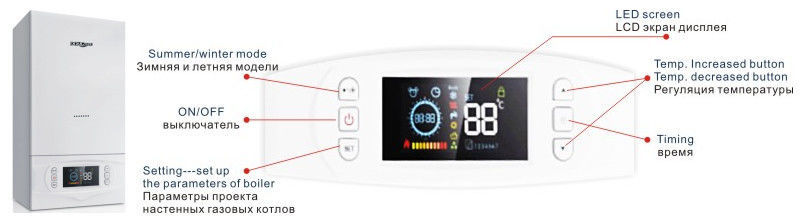

- Indication of temperatures, working modes, current burner power and error codes on the color multifunctional LED display.
- Integrated pump, expansion tank, heating safety valve,manometer,automatic air exhaust device.
- Fan burner with full gas- air premix provides gas combustion with close to ideal conditions-so the condensation process
begin earlier and by higher return line temperature(about 57℃)
- Modulation: boiler output changes automatically to keep the set heating and DHW temperature constant, with great
optimization of gas consumption.
- With simple operation muti-function human-machine conversation system.
- High efficiency sealed chamber system ensure sufficient burning and energy saving.
- The main parts are come from famous brand supplier which ensure best quality.
- 24H timing switch enable setting on/off with random needs.
- With efficient, energy saving and high lift water pump ensure boiler low noise while working.
- With modular structure design, advanced assemble process, ensure excellent quality.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- High quality copper waterway valves and pipe components ensure how water supplier reliable and comfortable.
- Unique remote control system realizing climate compensation function,ensure energy saving
- Digital display system pressure,more precisely.
- New lid design ,commissioning maintenance is very convenient.
- Steady ignition and work by low inlet gas pressure from 3mabr,full output by inlet gas pressure from 13mbar and higher.
- Frost protection: burner and pump will be switch on automatically by danger of freezing. It is allowed to use antifreeze
liquid instead of water in the heating system.
- Advanced pressure sensors technology process monitoring and water pressure displaying, ensure boiler safety.
- Multiple security features, automatic return to work status,security no worries.
- Fan burner with full gas- air premix provides gas combustion with close to ideal conditions-so the condensation process
begin earlier and by higher return line temperature(about 57℃)
- Modulation: boiler output changes automatically to keep the set heating and DHW temperature constant, with great
optimization of gas consumption.
- Integrated pump, expansion tank, heating safety valve,manometer,automatic air exhaust device.
- Frost protection: burner and pump will be switch on automatically by danger of freezing, It is allowed to use antifreeze
liquid instead of water in the heating system.
- Support smooth control with open therm room thermostat from any producer.
- Neat design, gas saving, high efficiency, environmental protected. Adopt advanced technology, high quality components,
high efficiency combustion.
