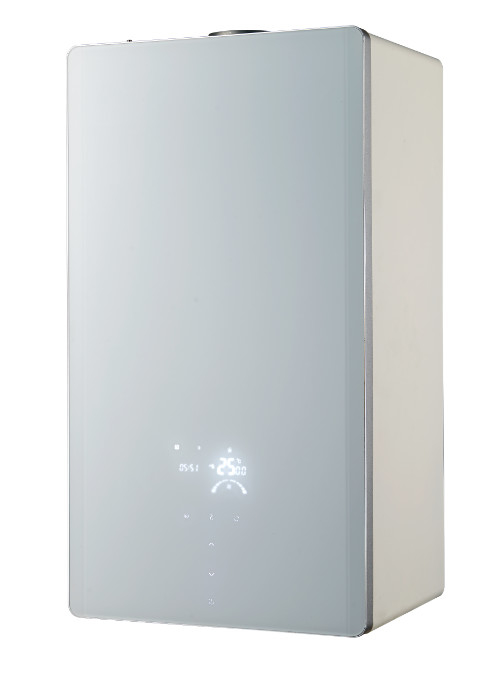

24H Timer Control Glass Panel Wall Hung Gas Boiler ISO 14001

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  24H Timer Control Glass Panel Wall Hung Gas Boiler ISO 14001

Product Details:
Place of Origin: China,Shunde
Brand Name: Dongyuan
Certification: ISO14001,ISO9001,OHSAS18001
Model Number: L1PB32-NS06
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: ach product in plastic bag which comes with the product instructions and foam packaging, then carton packaging outside with another thicker plastic bag.
Delivery Time: 30days after receiving the deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Detailed Product Description
Installation: Wall Mounted Housing Material: Stainless Steel
Power (w): 32000 Gas Type: LPG / NG
Usage: Bath & Heating,Water Heating,Gas Home Appliance Use: Bathroom,Outdoor Or Kitchen
Function: Remote Controlled Display: LED Displayer Optional
Gas Heater Type: Gas Boiler Advantage: Energy Save
High Light:

Glass Panel Wall Hung Gas Boiler

,

ISO 14001 Wall Hung Gas Boiler

,

Wall Hung Propane Boiler

  24H Timer Control Glass Panel Wall Hung Gas Boiler For Shower and Heating



PRODUCT DESCRIPTION



- With design of stable wind resistance, and the boiler works stably even in bad weather.
- With function of intelligent program, the time to on and off within one week can be set beforehand freely.
- The dark gray and steel wire drawing control board with elegance.
- With special device of explosion protection to protect the boilers.
- With silent technology, and running voice is lower than national standard.
- The creative button design of butterfly's shape with simplicity.
- With huge LCD diaplay and all working condition is clear.
- With selectable device of huge volume water tank to safety variety of requests for hot water.

24H Timer Control Glass Panel Wall Hung Gas Boiler ISO 14001 0



TECHNICAL DATA



Model Number L1PB32 L1PB36
Gas Type NG/LPG
Rated Gas Pressure(Pa) 2000/2800
Rated Gas Input(kw) 32 36
Rated Gas Output(kw) 28.2 31.7
Efficiency Under Rated Heat Input(%) Above88%
Power Supply 20-50HZ
Electric Power(W) 145 145
Temp.Range Of Heating Water(℃) Radiator:30-80 Floor Heating:30-60
Heating Area(㎡) 200-300 200-300
Lift Of pump(m) 7 7
Application Water Pressure(Mpa) 0.1-0.3
Expansion Tank Capacity(L) 8 8
Preset Pressure Of Expansion Vessel(Mpa) 0.1
Water Circulation Type Airtight Forced Circulation
△T=25℃ Hot Water Supply(kg/min) 16 18
△T=30℃ Hot Water Supply(kg/min) 13.3 15
Temp.Range Of DHW Supply(℃) 30-60
Applicative Water Pressure(mpa) 0.03-0.8
The Minimum Starting Flow (L/min) 2
The Minimum Closed Flow(L/min) 1.6
Connections(mm) For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
Air Input/Exhaust Duct(mm) φ60/φ100
Sparated Input/Exhaust Duct(optional) φ80/φ100
The length Of Flue Dust(m) 1
Noise On Working(DB) <42
Exhaust Type Forced Exhaust
Ignition Type Integrated Automatic Ignition
Temperature Control Gas Proportional Adjustment






COMPANY PROFILE



ABOUT US

In order to meet the demand of heating market, Foshan Shunde Dongyuan gas appliances Ind. Co.,Ltd as a professional wall hung gas boiler , gas water heater manufacturer was established in 2007 and start to develop the overseas market from 2010 , and recognized as “ China High-tech enterprise” in 2017. We move to the new factory in 2018, and named Foshan Dongyuan Thermal Technology Co., Ltd.

With an area of 14,000 square meters, Foshan Dongyuan Thermal Technology Co., Ltd. have five fully automatic production lines with an annual capacity of 500,000 pieces ,have 8 engineers with 26 years R&D experiences . With the powerful and skillful work team, rigid production and quality control ,DONGYUAN success to obtain the ISO9001, ISO14001 certificate, our boilers and water heater hot sale well all over the world, especially in Russia, Iran, Azerbaijan, Uzbekistan, Israel and other European,Southest Asia and South America, etc.

From mold design and material development to precision machining and products finishing, DONGYUAN exercises strict quality control on each production stage, not only produce traditional wall-mounted gas boiler, flue type and force type gas water heater , but also develop condensing gas boiler with thermal efficiency up to 105% , and the balanced type gas water heater .

DONGYUAN will continue its effort to create high quality product and serve the customers from all over the world, to earn co-prosperity and mutual interest.
